Pacbrake HP10631 HP625 Series 12V Horizontal Air compressor kit

Code: HP10631

US$799.99

In Stock

Description

Pacbrake Universal HP625 HD 12V Horizontal Air Compressor Kit (HP10631)



Pacbrake HP10631 12V HP625 Series Heavy duty Air Compressor Kit consists of HP625 Series Pacbrake HP10625H Air Compressor and the basic components of the unloader block assembly.

This kit Does Not Include the pre-built wiring harnesses. Pacbrake’s 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

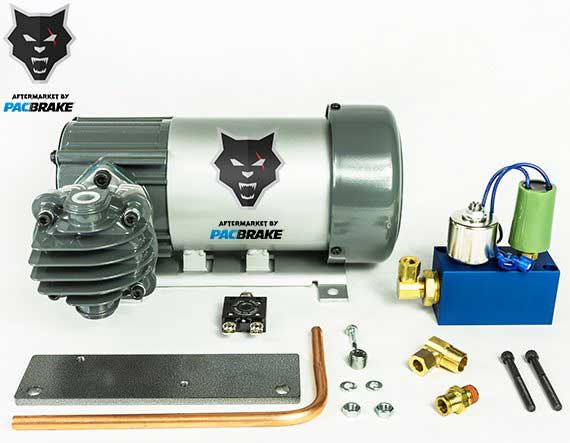

This kit includes

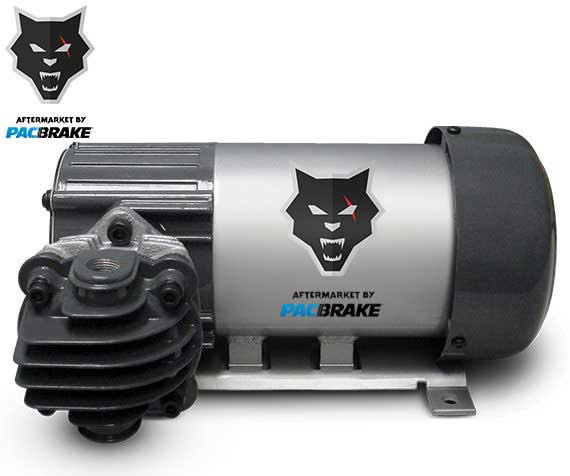

  • Pacbrake’s HP625 Series Pacbrake Air Compressor (Kit Number HP10625H)
  • The basic components of the unloader block assembly
  • This kit Does Not Include the pre-built wiring harnesses

Compressor features

  • Copper wire wound permanent magnet motor
  • Oil-less design
  • Sealed bearings
  • PTFE piston ring
  • Cast aluminum cylinder head
  • Hard anodized aluminum cylinder and aluminum sleeve

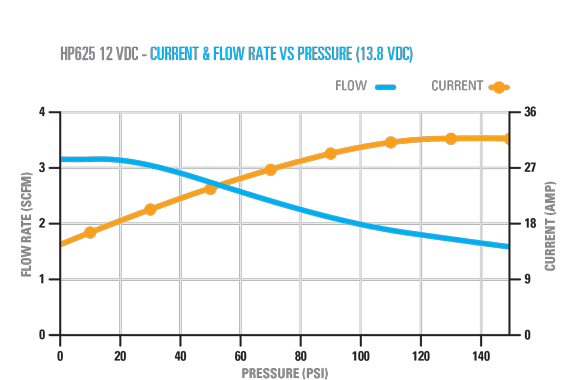

Compressor Specifications

  • 12V DC
  • ; 100 percent duty cycle at 100 PSI
  • ; 3/4 HP
  • ; horizontal head configuration
  • size is 11.5 inch x 9.5 inch x 6 inch or 293 mm x 242 mm x 153 mm (LxWxH)
  • Weight is 17.7 lbs

Additional information

Weight18.5 lbs
Dimensions12 × 6 × 10 in
