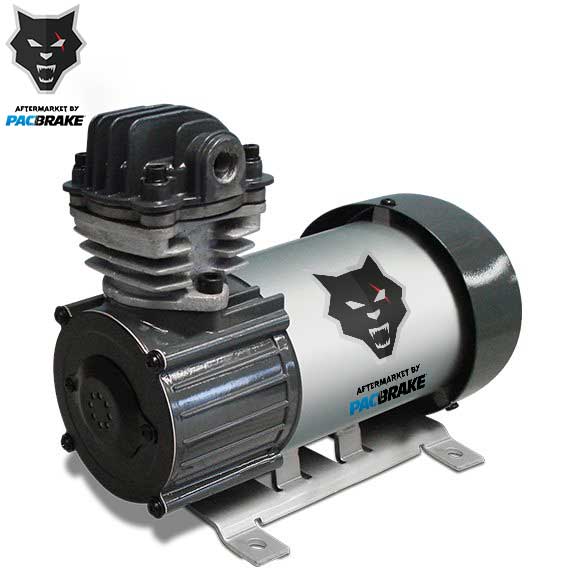

Pacbrake HP10625V-24 HP625 Series 24V Vertical Air compressor

Code: HP10625V-24

CAD$568.06

In Stock

Description

Pacbrake Universal HP625 Series 24V Vertical Air Compressor (HP10625V-24)



Pacbrake HP10625V-24 24V HP625 Series Air Compressor is a heavy duty compressor with vertical pump head configuration. The HP625 series Pacbrake compressors requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Pacbrake’s 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

Compressor features

  • Copper wire wound permanent magnet motor
  • Oil-less design
  • Sealed bearings
  • PTFE piston ring
  • Cast aluminum cylinder head
  • Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

  • 24V DC
  • 100 percent duty cycle at 100 PSI
  • 3/4 HP
  • Vertical head configuration
  • Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
  • Weight is 17.7 lbs.

Note: The HP625 series Pacbrake compressors i.e Part Number HP10625V-24V requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Details:

  • Vertical Pump Head
  • Finish Anodized
  • Series HP625 Series
  • 24 Volt



Additional information

Weight17.7 lbs
Dimensions11 × 10 × 6 in
