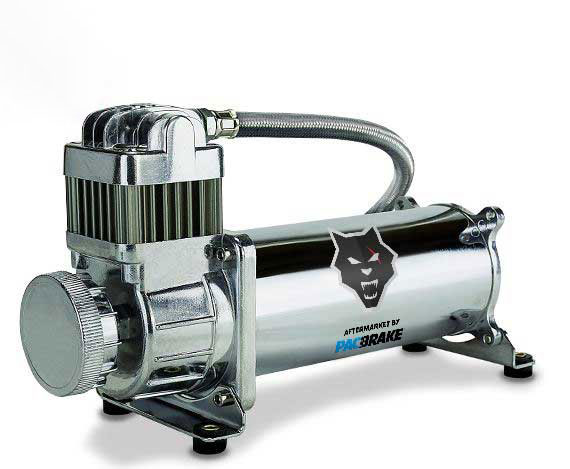

Pacbrake Universal HP425 Series 12V Air Compressor w/ Braided Hose (HP10300)
Get quick and effortless inflation power at your fingertips with Pacbrake’s robust compressors. The Pacbrake HP10300 HP425 series air compressors have a 50% duty cycle (30 minutes on / 30 minutes off), deliver 1/4 horsepower and are offered in 12 VDC.
PRODUCT DESCRIPTION
12V HP425 Series Air Compressor Kit consists of air compressor and braided hose only.
These 1/4 horsepower compressors have an oil-less design, sealed bearings, PTFE piston ring, copper wire wound permanent magnet motor, a hard anodized aluminum cylinder sleeve and are equipped with a check valve to prevent possible motor damage. Mountable in any orientation.
Compressor Specifications:
- 50 percent Duty Cycle (30 minutes on/off at 100 PSI)
- 200 PSI Max Working Pressure
- 1.75 SCFM
- Size 10.8 x 3.9 x 6.6 inches (LxWxH)<0/li>
- Weigh 10.26 lbs
Details:
- Finish Chrome
- Hose Type Braided
- Series Pacbrake Series
- Volts 12 Volt
HP425 12 VDC TANK FILL TIME:
- 1/2 Gallon Tank (HP10053): 24 seconds for 0 – 100psi; 21 seconds for 100 – 150psi
- 2.5 Gallon Tank (HP10050): 135 seconds for 0 – 100psi; 110 seconds for 100 – 150psi
- 5 Gallon Tank (HP10050): 255 seconds for 0 – 100psi; 230 seconds for 100 – 150psi
