Pacbrake Universal Onboard Air Kit W/ 2½ Gallon Aluminum Air Tank W/Compressor (HP10164-AL)

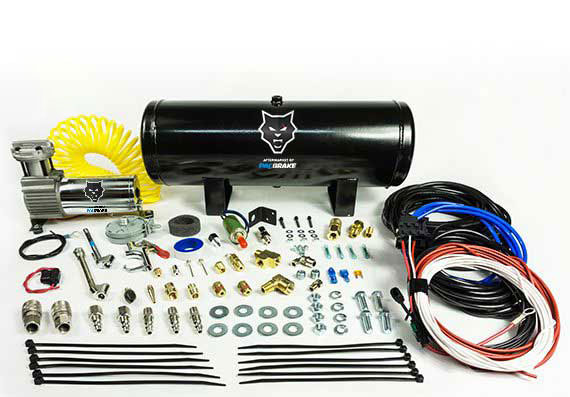

Pacbrake HP10164-AL Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, aluminum air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories
Create & Store compressed air on the go with Pacbrake’s Onboard Air Kits: a complete onboard air system for any vehicle!
Each Onboard Air System comes complete with:
- HP325 Series 12V DC compressor (Part Number HP10143)
- 2 1/2 Gallon air tank (Part Number HP10013)
- Fittings
- Pressure switch
- Relay(s)
- Electrical connectors and all applicable accessories
Compressor Specifications
- (Part Number HP10143)-12 VDC
- 100 percent (1 Hour at 100 PSI) duty cycle
- 1/4 HP
- Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
- Weight is 5.5 lbs
Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

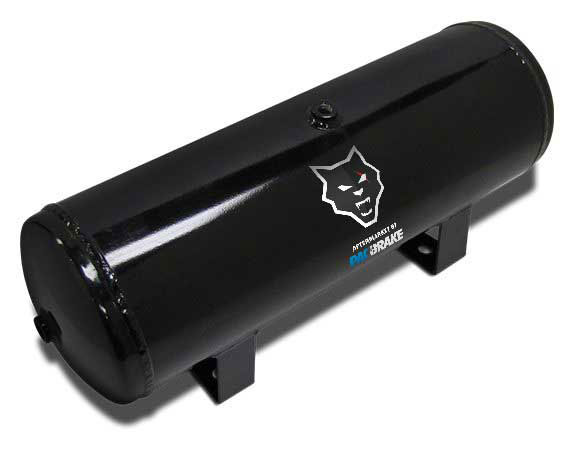

Aluminum Air Tank Specifications
- (HP10013)-2 1/2 gallon capacity
- 5-3/8′ NPT ports
- Rust inhibitor applied to inside of tank
- Max working pressure 150 PSI
- Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
- Weight is 9.8 lbs
- Welded on mounting brackets.
