Description
Pacbrake Universal HP325 Series ½ Gallon Onboard Air Kit (HP10163)
Pacbrake HP10163 Onboard Air Kit with 1/2 gallon air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.
Fill your tires (tp to 33″) and check tire pressure. Inflate air mattresses, sports balls, beach toys, etc.. Blow air for cleaning, dusting and quick removal of dust and debris. Onboard air is the ultimate in convenience!
PRODUCT DESCRIPTION
Pacbrake Onboard Air Kit with 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.

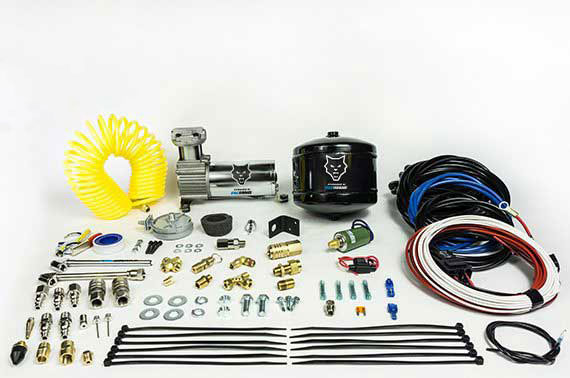

Each Onboard Air System comes complete with
- HP325 Series 12V DC compressor (Part Number HP10143)
- 1/2 Gallon air tank (Part Number C11940)
- Fittings, pressure switch, relay(s)

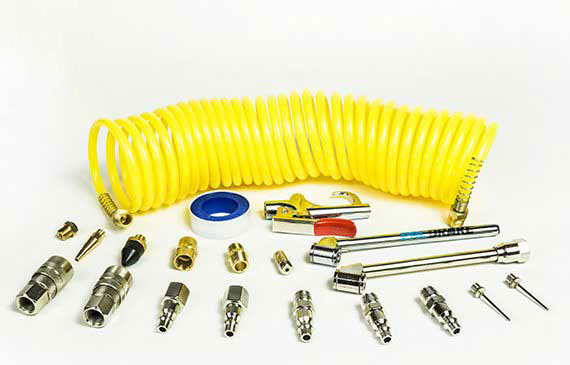

- Electrical connectors and all applicable accessories
Compressor features
- Copper wire wound permanent magnet motor
- Oil-less design; sealed bearings
- PTFE piston ring
- Cast aluminum cylinder head
- Hard anodized aluminum cylinder and aluminum sleeve
Compressor Specifications
- Part Number HP10143 -12 VDC
- 100 percent (1 Hour at 100 PSI) duty cycle
- 1/4 HP
- Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm

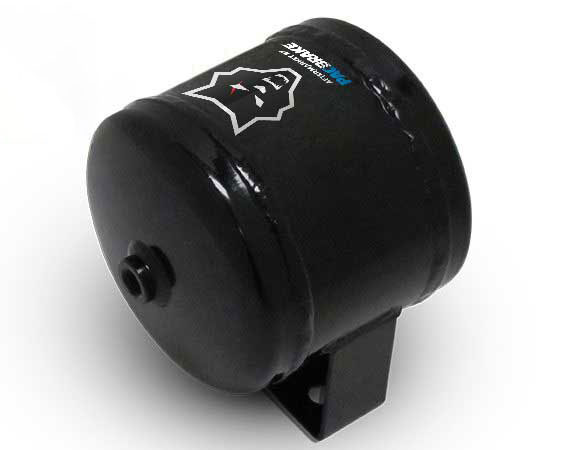

- Weight is 5.5 lbs. Air Tank Specifications (C11940)-0.5 gallon capacity
- 2-1/4 inch NPT ports
- Rust inhibitor applied to inside of tank
- Max working pressure 150 PSI
- Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH)
- Weight is 3.4 lbs
- Welded on mounting brackets
