Description
Pacbrake Universal HP325 Series 12V Air Compressor Kit w/ Wiring Harnesses (HP10066)
The Pacbrake HP10066 HP325 Series 12 Volt Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 1/4HP air compressor that has a 33% duty cycle (20 minutes @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the Pacbrake HP625 Series Air Compressor will get the job done!
PRODUCT DESCRIPTION

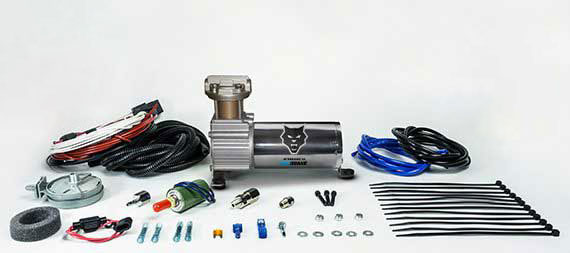

12V HP325 Series Premium Air Compressor Kit consists of air compressor, pre-built wiring harnesses and required hardware
Compressor Specifications
- Horsepower: 1/4 HP
- Voltage: 12 VDC
- Duty Cycle: 33% (20 mins @ 100 PSI)
- Max Working Pressure: 150 PSI
- Dimensions: 8.7″ x 4″ x 6.2″ (LxWxH) or 221mm x 102mm x 158mm
- Weight: 5.5 lbs
- (Part Number HP10143)
Details
- HP325 Series
- Hose Type: Braided
- Voltage: 12 VDC
- Hardware Included: Yes
- Pre-built Wiring Harnesses: Yes
