Description

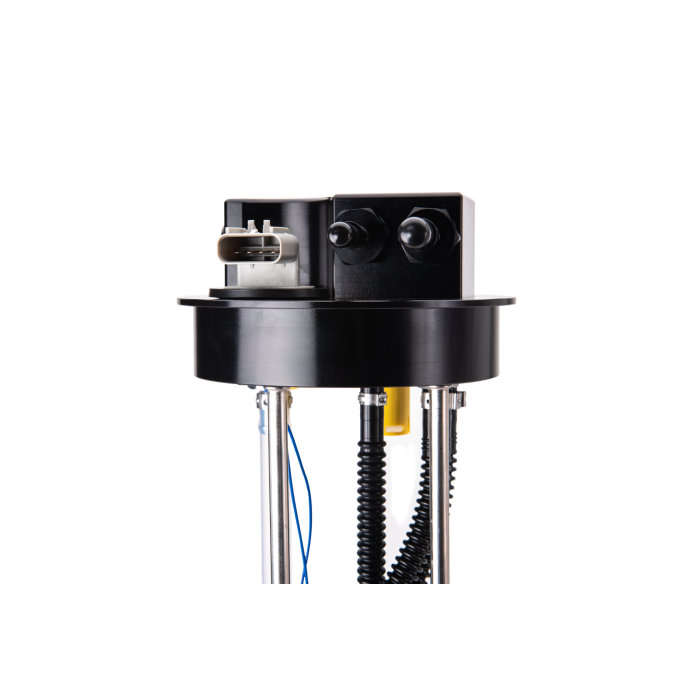

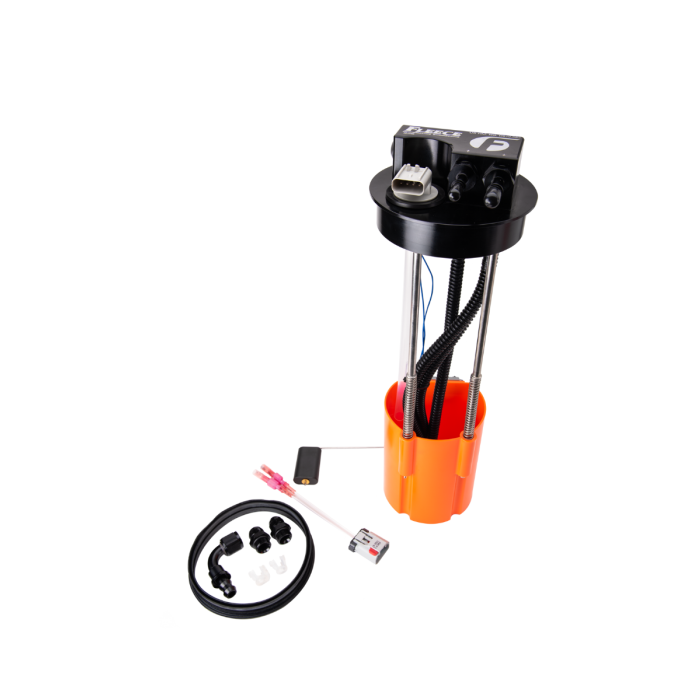

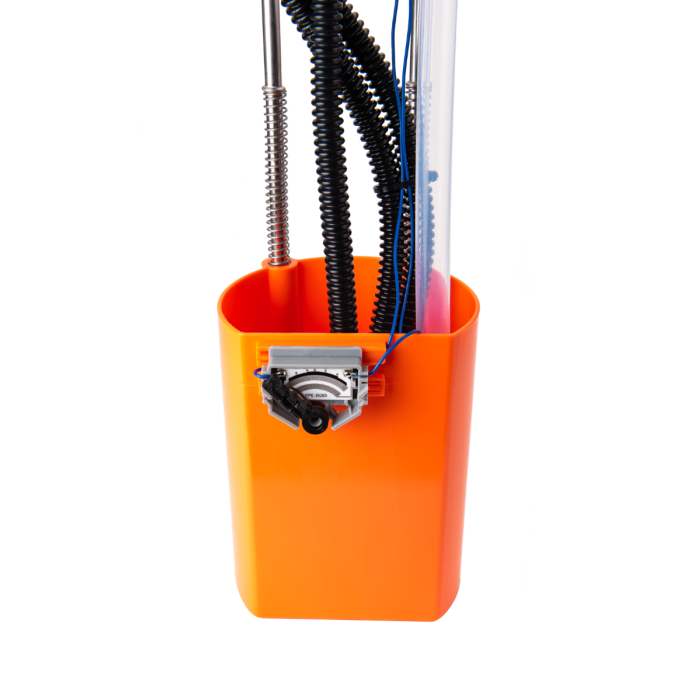

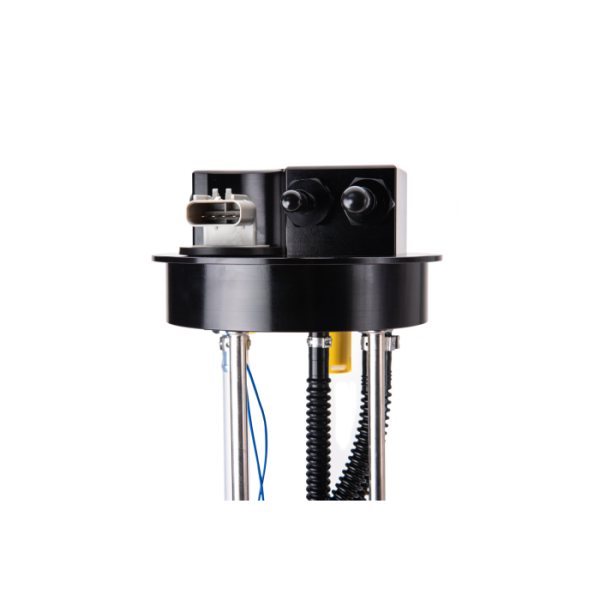

Fleece SureFlo® Performance Sending Unit for 1991-1997 Dodge Cummins ( FPE-SF-CUMM-9197)
When using an external aftermarket fuel pump, traditional solutions like installing a draw straw or drilling the tank for a sump often lead to issues, such as air entering the fuel system when the tank drops below a quarter full, causing cavitation. Fleece offers the perfect solution with the FPE-SF-CUMM-9197 SureFlo performance sending units, specifically designed for compatibility with aftermarket lift pumps. These units easily fit into the stock sending unit location and use factory-style quick disconnects to adapt to stock fuel lines, allowing for a clean, hassle-free installation without any cutting or drilling. With SureFlo, fuel is drawn continuously into the pump, effectively eliminating air intake issues and solving common ¼ tank problems. Plus, the bucket assembly’s one-way check valves ensure smooth, uninterrupted fuel flow even at lower tank levels.
FEATURES:
- OEM style fitment that requires no tank cutting or drilling
- New fuel level electronics and fuel float
- Heavy duty billet aluminum cap
- Universal -8 AN ports for professionally plumbing a custom fuel setup
- New O-ring or flange seal
APPLICATION NOTES
IMPORTANT – Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration. For Model Year 1998 trucks equipped with a 12 valve engine – your vehicle will require our 1998-2002 SureFlo (FPE-SF-CUMM-9802). These trucks would have been originally equipped with Carter sending unit part number 52102079AB.
You can also verify your proper part number by the resistance range of the level sender on your existing unit.
If your stock sending unit ranges between 6 – 113 ohms – use FPE-SF-CUMM-9198
If your stock sending unit ranges between 20 – 220 ohms – use FPE-SF-CUMM-9802
LOW FUEL LEVEL LAMP – This sending unit does NOT include provisions to illuminate the Low Fuel level dash lamp.
IMPORTANT – Verify your OE MOPAR part number in the cross-reference chart:
| Model Year | Replaces MOPAR P/N | Previously Superseded P/N’s | Fuel Tank Size |
| 1991 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1992 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1993 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1994 | 4864735 | R4864735, 4864735 | 35 Gallon |
| 1995 | 4864209 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
| 1996 | 4798671 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
| 1997 | 4798671 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
USE ON 1989/1990 MODEL YEAR TRUCKS: This sending unit will work on MY 1989 and 1990 trucks that have a tank swap to a 1991-1997 newer tank.
