Description
Fleece PowerFlo® Lift Pump for 1991-1997 Dodge Cummins (FPE-PF-CUMM-9197)
Fleece FPE-PF-CUMM-9197 complete fuel supply upgrade kit for your 1991-1997 Dodge Cummins. Includes a new sending unit and float to get your fuel gauge working again! The PowerFlo Lift Pump is the latest OEM replacement performance lift pump from the diesel experts at Fleece Performance. The PowerFlo is the only in-tank lift pump capable of supporting up to 800 hp!
FEATURES
Direct OEM In-Tank Fitment:
The PowerFlo Lift Pump requires no drilling, cutting, or sumps to cut into your fuel tank and installs in less than half the time of other high flow lift pumps.
Dual Gerotor:
Two is always better than one, and the PowerFlo delivers with two OEM quality gerotor pumps, increasing flow capacity and reliability over the factory pump.
Seamless Integration:
The active fill bucket eliminates the need for tank sumps, draw straws, and the ¼ tank issues typically encountered when seeking a higher flow lift pump to meet your engine’s need.

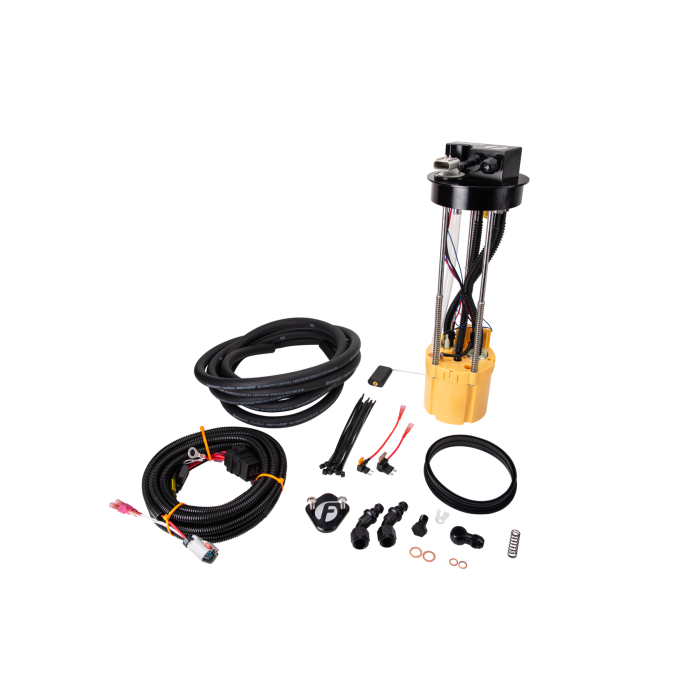

Kit includes:
- PowerFlo Lift Pump with integral fuel sender
- 16′ of push lock hose and all necessary AN fittings
- Mechanical fuel pump block off plate (FPE-CUMM-FBOP)
- Wiring harness and fuse taps
- Flange tank seal
*Protected under US Patent No. D910,083 and US Trademark Reg. No. 6,878,860
APPLICATION NOTES
IMPORTANT – Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration. For Model Year 1998 trucks equipped with a 12 valve engine – your vehicle will require our 1998 12-valve specific kit (Part Number FPE-PF-CUMM-98-12V) . These trucks would have been originally equipped with sending unit part number 52102079AB.

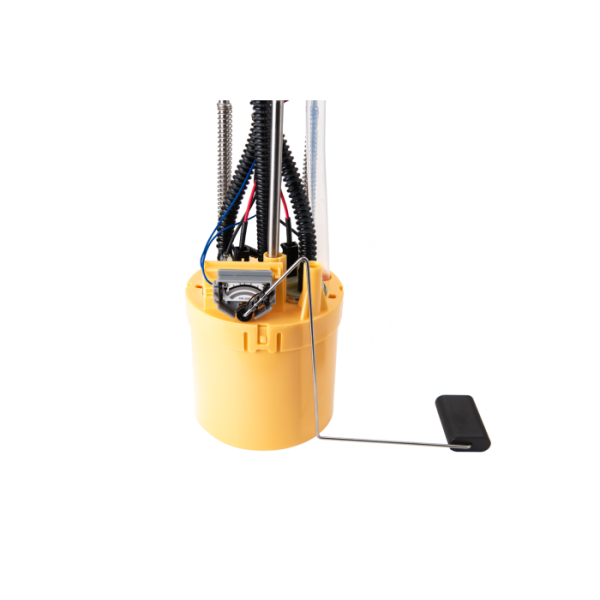

You can also verify your proper part number by the resistance range of the level sender on your existing unit.
If your stock sending unit ranges between 6 – 113 ohms – use FPE-PF-CUMM-9198
If your stock sending unit ranges between 20 – 220 ohms – use FPE-PF-CUMM-98-12V
LOW FUEL LEVEL LAMP – This sending unit does NOT include provisions to illuminate the Low Fuel level dash lamp.
IMPORTANT – Verify your OE MOPAR part number in the cross-reference chart:
| Model Year | Replaces MOPAR P/N | Previously Superseded P/N’s | Fuel Tank Size |
| 1991 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1992 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1993 | 52018309 | 52004838, 52004937 | 30 Gallon |
| 1994 | 4864735 | R4864735, 4864735 | 35 Gallon |
| 1995 | 4864209 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
| 1996 | 4798671 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
| 1997 | 4798671 | 04798293, 52102024, 52127802, R4864209, 4864209 | 35 Gallon |
USE ON 1989/1990 MODEL YEAR TRUCKS: This sending unit will work on MY 1989 and 1990 trucks that have a tank swap to a 1991-1997 newer tank.
