Description
2007.5-2018 Cummins Regulated Return Fuel Distribution Block

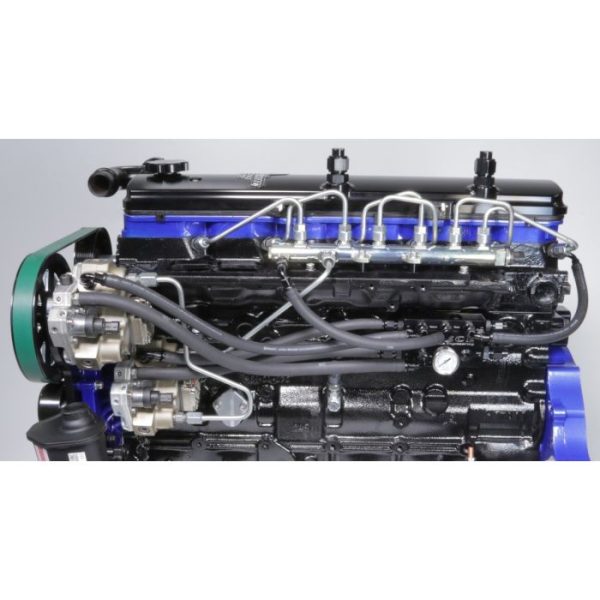

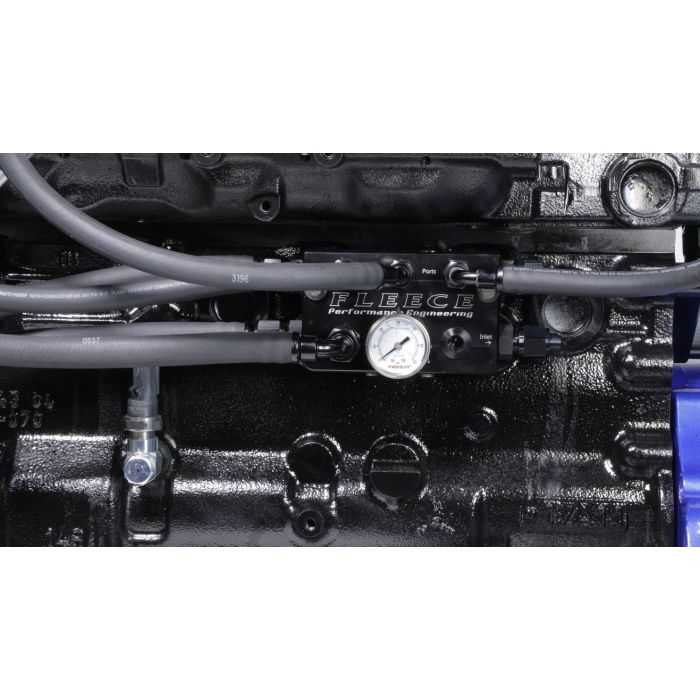

The Fleece FPE-CRR-20-0806 Regulated Return Fuel Distribution Block by Fleece Performance improves upon our standard fuel distribution block by integrating a high-flow pressure regulator. This addition, combined with high-flow aftermarket electric fuel pumps that lack built-in pressure regulation, ensures more consistent fuel pressure at the CP3. Furthermore, it includes an extra return line port and feed line port. The extra return line port allows you to remove the factory fuel pressure relief valve hard line and fuel injector return galley hard line, creating clearance for high-flow side draft intakes typically found on competition engines. Plus, the two feed line ports enable you to run two lift pumps, providing sufficient fuel volume at all times. To make installation seamless, the kit also includes metric straight thread to AN fittings and hoses, replacing the original hard lines and connecting directly to the regulated return distribution block.
Fleece FPE-CRR-20-0806 Regulated Return Fuel Distribution Block Features:
- Integrated High-Flow Pressure Regulator: Ensures consistent fuel pressure at the CP3, ideal for aftermarket electric fuel pumps without built-in regulation.
- Extra Return and Feed Ports: Supports removal of factory hard lines and enables the use of two lift pumps for optimal fuel volume.
- Clearance for High-Flow Intakes: Allows removal of the fuel pressure relief and injector return galley hard lines for better clearance in competition engines with side draft intakes.
- Complete AN Fittings and Hose Kit: Includes all necessary fittings and hoses to replace factory hard lines and connect to the regulated return system.

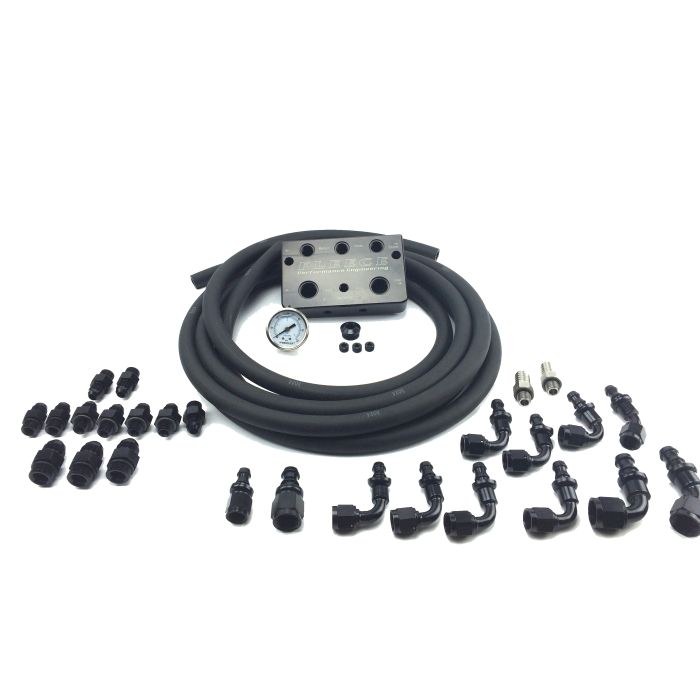

Kit Includes:
- (1)Fuel Distribution Block with Integrated 20PSI Regulated Return
- (2) Push Lock CP3 Feed Fittings
- (4) -6AN to M12 Fittings
- (1) -6AN 120⁰ to Push Lock Fitting
- (6) -6AN 90⁰ to Push Lock Fittings
- (1) -6AN 45⁰ to Push Lock Fitting
- (1) -6AN Straight to Push Lock Fitting
- (1) -8AN Straight to Push Lock Fitting
- (1) -8AN 90⁰ to Push Lock Fittings
- (2) -8AN 45⁰ to Push Lock Fitting
- (5) -6 to 9/16”-18 Straight Male Fittings
- (4) -8 to 3/4”-16 Straight Male Fittings
- (6’) -6AN (3/8”) Push Lock Hose
- (4’) -8AN (1/2”) Push Lock Hose
- (1) 0 – 60 PSI Stainless Steel-Case Liquid-Filled Gauge with 1-1/2″ Dial
- (2) M8x1.25 x 55mm Stainless Steel Socket Head Cap Screws
APPLICATION NOTES
* This kit does not include 1/2” (-8AN) or 3/8” (-6AN) fuel line to feed the distribution block or return to the tank.
** A 0-60 psi pressure gauge is included to allow for quick visual checks of fuel pressure set-point. Regulation pressure is preset at 20 psi, which is optimal for high RPM CP3 pump operation. Additional regulation pressures can be easily obtained by changing the internal regulator spring.
*** This kit is designed to be used with a 6.7L rail and (2) 6.7L CP3 pumps.
