FASS XWS3002 – Replacement Filter – Universal

Description

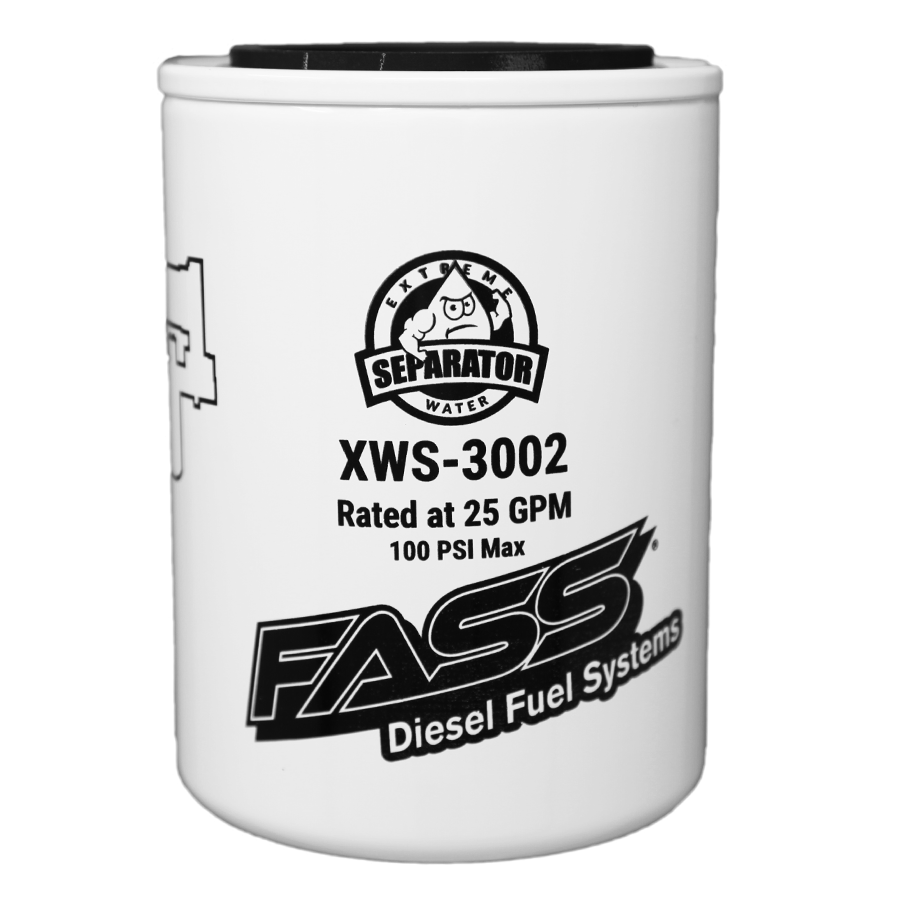

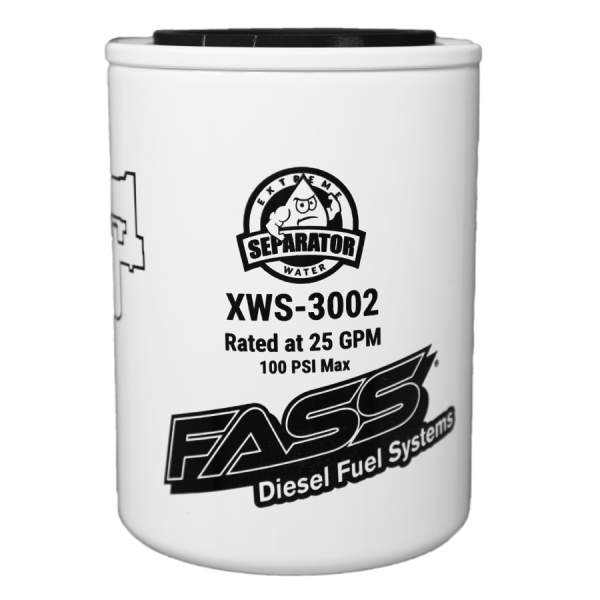

FASS Fuel Systems Extreme Water Separator Filter (XWS3002)

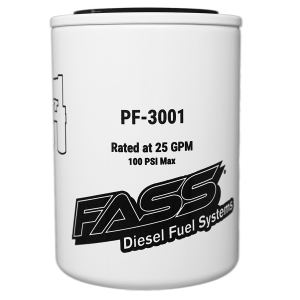

The new FASS XWS3002 Replacement Filter MUST be used in conjunction with the PF3001, the new filters cannot be used in combination with the FF-3003/FF-3010 or FS-1001/FS-1020.

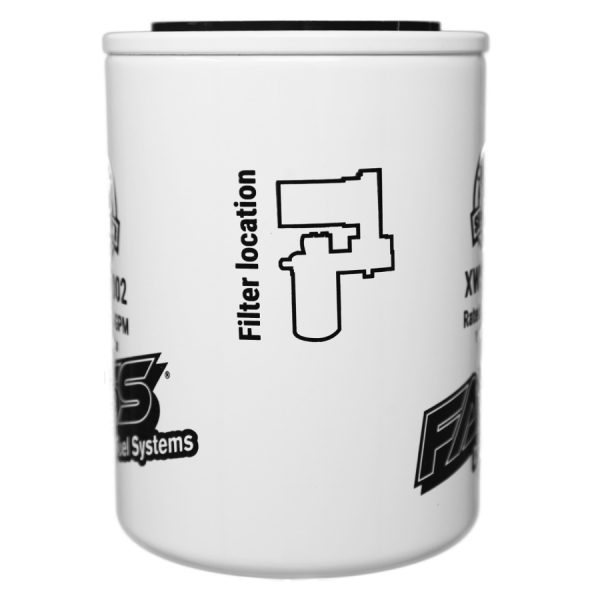

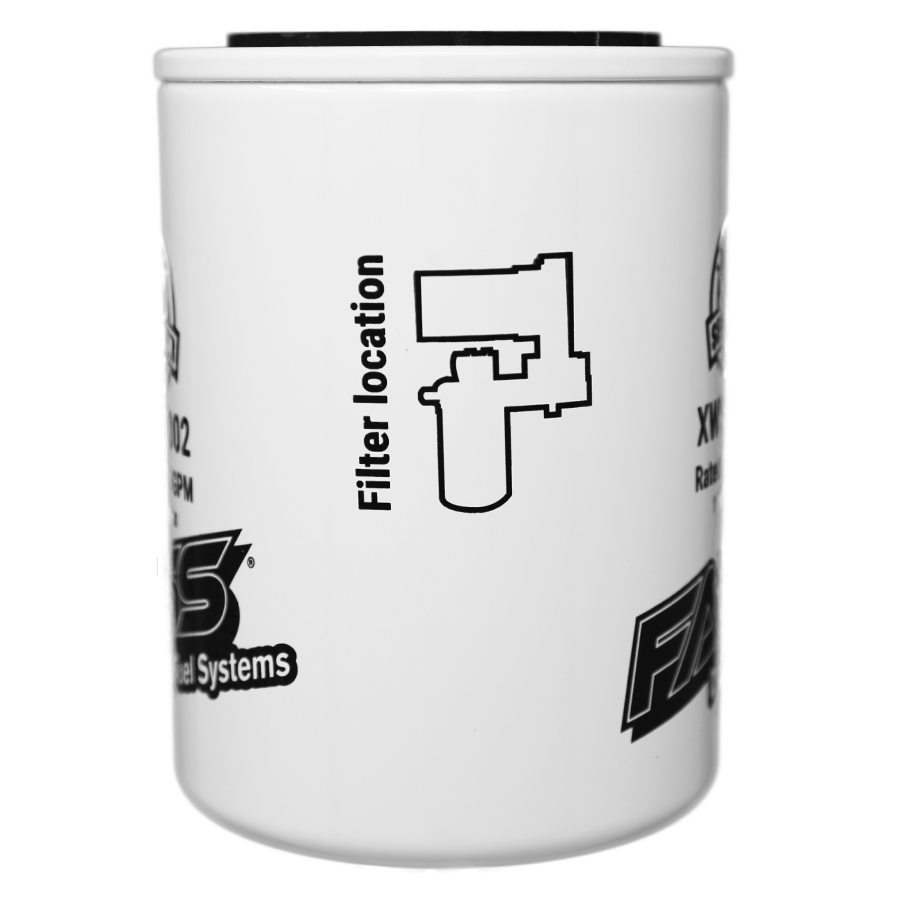

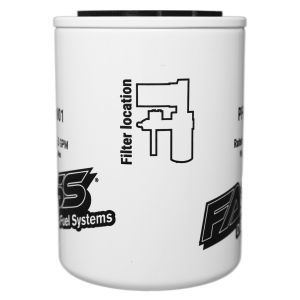

When replacing the discontinued filters with the new XWS3002 and PF3001, the FASS XWS3002 Replacement Filter will now be placed on the pressure side of the System and the PF3001 will be placed on the suction side. PLEASE SEE THE LOCATION DIAGRAM ON THE NEW FILTERS FOR PROPER FILTER PLACEMENT!

For use with: Drop-In Series, FASS Titanium Series or FASS Titanium Signature Series Systems

Our New more efficient Extreme Water Separator is rated @ 2 microns absolute. Our water separator no longer has a drain because the filter element traps the water.

Features:

• Designed for use with FASS Drop-In, Titanium, and Titanium Signature Series fuel systems

• Must be used with PF3001 filter for proper operation

• Not compatible with older filter models (FF-3003, FF-3010, FS-1001, FS-1020)

• XWS3002 now installs on the pressure side of the system

• PF3001 installs on the suction side

• Filter placement instructions included for easy installation
