Edge Products Juice w/ CTS Monitor E21103

KEY FEATURES:
? 6 on-the-fly Adjustable Power Levels
? Touch-of-a-Button Control
? Additional 90 HP and 225 ft lb Torque*
? Increases Fuel Economy**
? Includes Turbo Timer
? Displays DPF (Diesel Particulate Filter) Regeneration Status

The Edge Juice with Attitude is a highly sophisticated package capable of dramatically improving your Duramax’s driveability, towing, mileage and, most importantly, POWER.

The Juice module is a completely weatherproof module that installs under the hood. Using factory-style connections, in just 30 minutes you can add up to six levels of adjustable power ranging from 30 to 90 horsepower and increase torque up to 225 ft. lbs.

The Juice greatly improves responsiveness and driveability, while at the same time increasing fuel economy. The Turbo Timer is the latest in a long list of Edge safeguards. This feature prolongs turbo life by allowing the truck to run after shut-off for a predetermined time or until a specific EGT is reached.

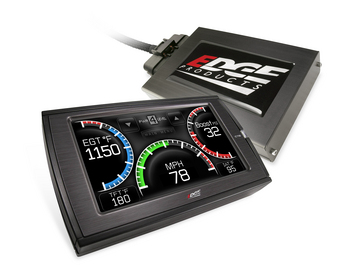

When used in conjunction with the Attitude monitor, you can control the six power levels on the fly from inside the cab of your truck. The Attitude displays all the information a set of gauges would and automatically monitors exhaust gas temperature (EGT) and de-fuels the engine to prevent excessive EGTs.

The following power gains are representative of an actual test vehicle. These gains were measured on a SuperFlow Dyno at an altitude of 4400 ft above sea level, and represent power delivered to the rear wheels of the test truck. The only modification made to the test truck was the addition of the Edge Juice module. Power gains may vary based on vehicle and geographical location.

Level 0: Stock
Level 1: 30 Horsepower – 60 Foot Pounds of Torque
Level 2: 40 Horsepower – 80 Foot Pounds of Torque
Level 3: 50 Horsepower – 95 Foot Pounds of Torque
Level 4: 60 Horsepower – 115 Foot Pounds of Torque
Level 5: 80 Horsepower – 135 Foot Pounds of Torque
Level 6*: 90 Horsepower – 225 Foot Pounds of Torque

*Hot Unlock Code plus additional fee required for level 6.

Your Attitude monitor allows you to monitor the performance of your engine’s vital components and output values. The following parameters can be displayed on the main Attitude screen (maximum 4 at one time):
? EGT (exhaust gas temperature)
? DPF Regeneration Status
? Barometric PSI
? True Speed (corrected for tire size)
? Gear (torque converter lock)
? Intake Air Temp
? Load %
? Transmission Temp
? Throttle %
? Turbo Boost PSI
? RPM
? Back down (Percent back down due to high EGT)
? ECM Volts
? Engine Coolant Temp
? Fuel Temp (measure in the fuel rail)
? Module Temp

That Attitude can sound an alert when certain engine parameter levels are met. The following alerts are available:
? EGT
? Boost
? DPF Regeneration Status

Keep track of your performance by recording maximum/minimum for a variety of parameters including:
? Max RPM
? Backdown %

**Increase in fuel efficiency varies based on driving style.
