Description

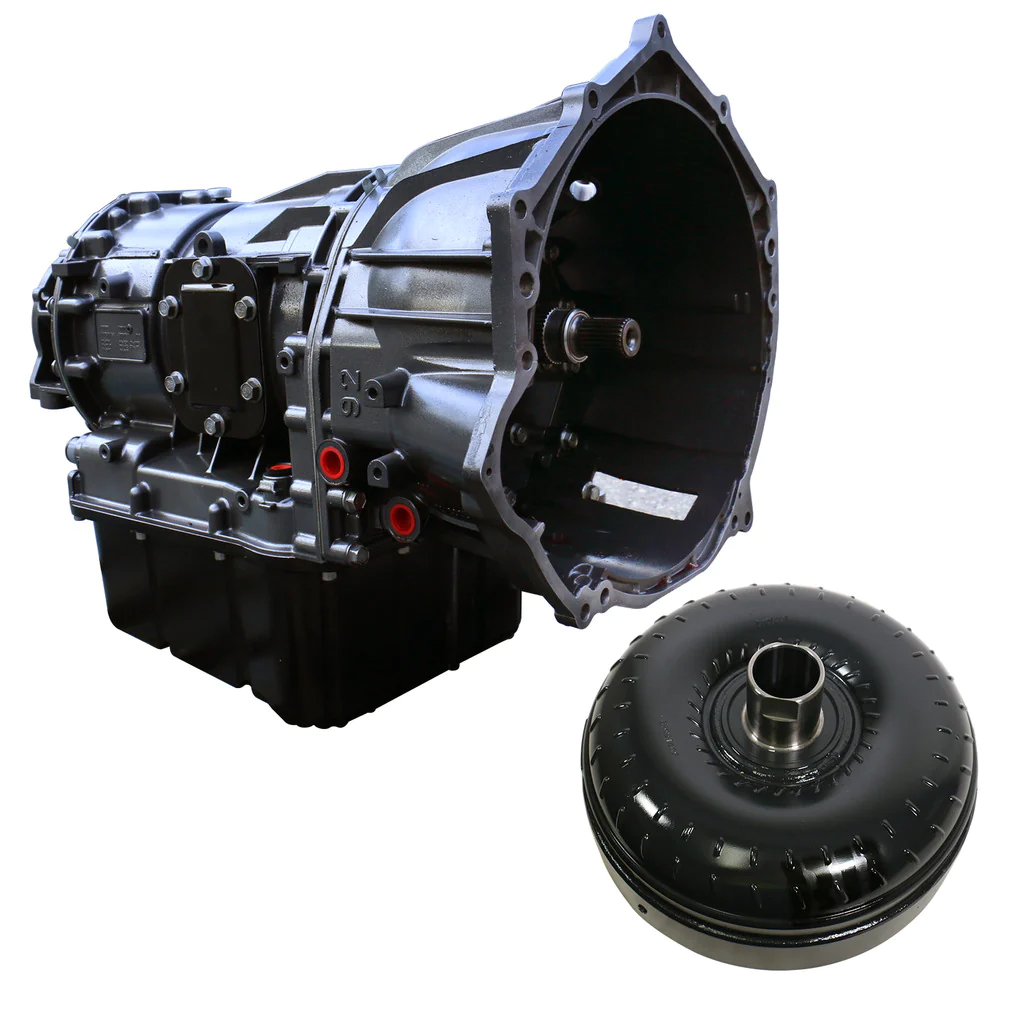

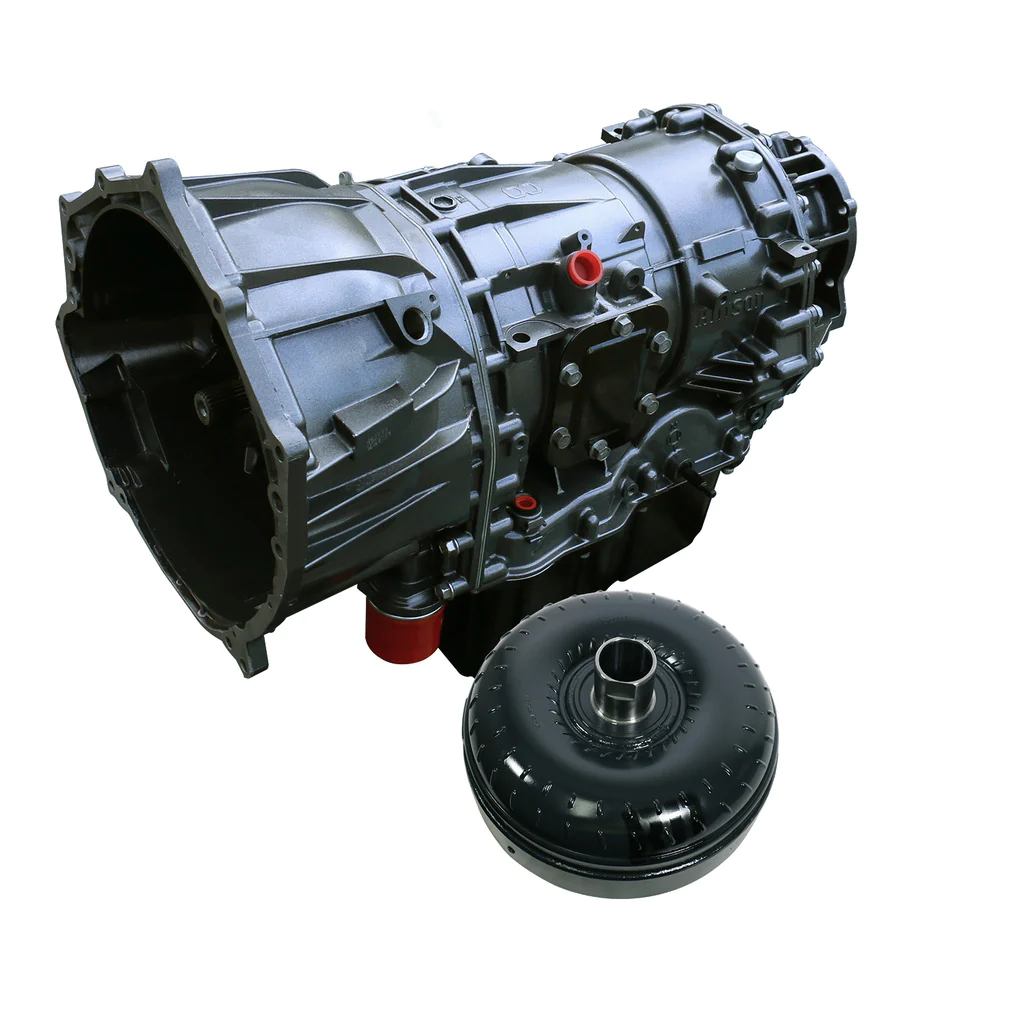

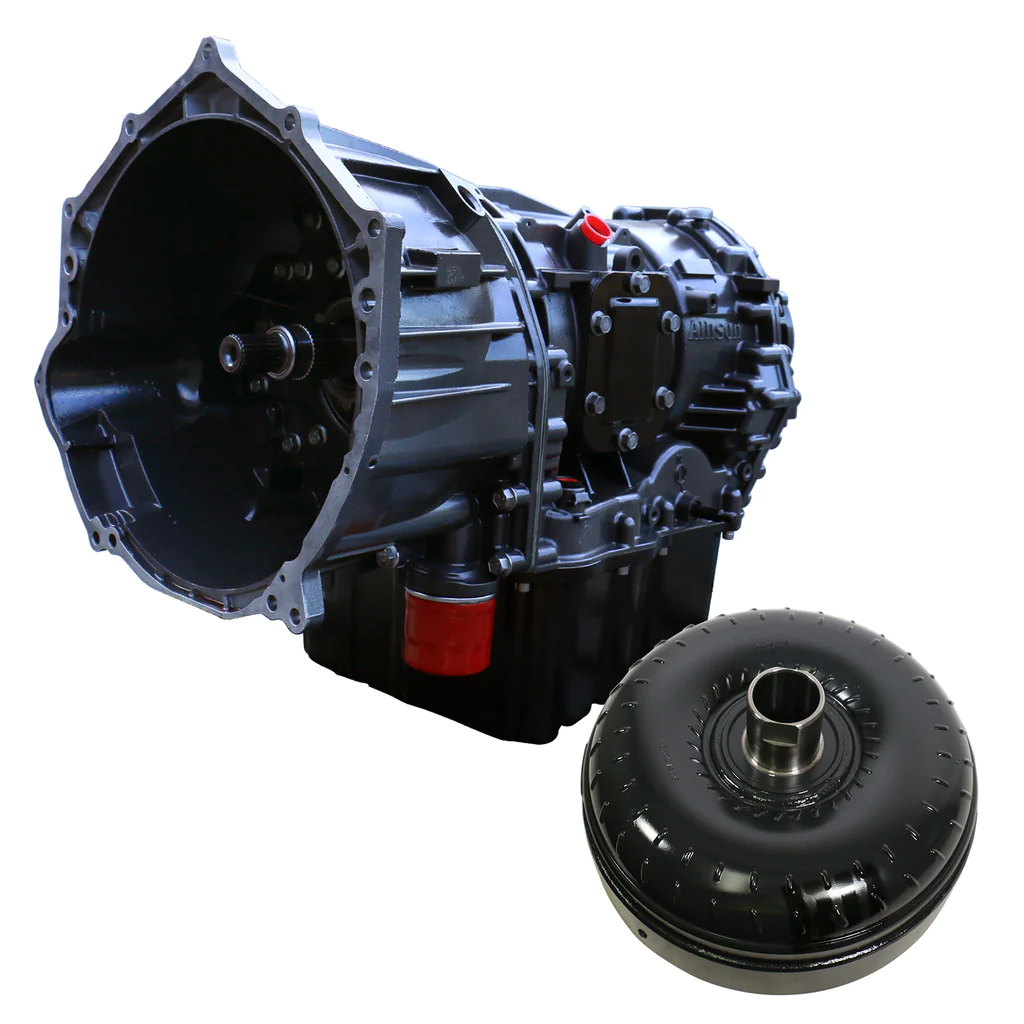

DURAMAX ALLISON 1000 TRANSMISSION & CONVERTER PACKAGE LLY
FEATURES
TRANSMISSION:
- Increase the durability of your drivetrain
- BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
- High energy GPZ(TM) frictions
- Revised oil circuits
- New convertor lock up valve to boost lock-up pressures
- New A & B trim valves deliver full line pressure to the clutches
- Increased clutch count
- Clutch Count: C1 8 clutches (14% increase over stock)
- Clutch Count: C2 7 clutches (17% increase over stock)
- Clutch Count: C3 7 clutches (75% increase over stock)
- Clutch Count: C4 7 clutches (17% increase over stock)
- Clutch Count: C5 7 clutches (17% increase over stock)
- Each transmission is dyno tested
- Available with Billet input shaft
PROFORCE 3D TORQUE CONVERTER:
- Triple Disc
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings – not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
PROFORCE TORQUE CONVERTER:
- Enhanced Stall – Street/Towing applications
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
INSTALL TIME
- 9 Hours
WARRANTY
Parts
- 36-Months
- 150,000 Miles
Labour
- 12-Months
- 24,000 miles
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
